I recently got into 3D printing (for realsies this time) and had the inkling to try making a few timelapses of the parts I was printing, as part of my upcoming NAS case. I had already set up OctoPrint, a remote web interface for my 3D printer that runs on an external device, which in my case was a Raspberry Pi 3B. I was partly inspired to do this project by this beautiful timelapse created by Jeff Geerling in his blog post:

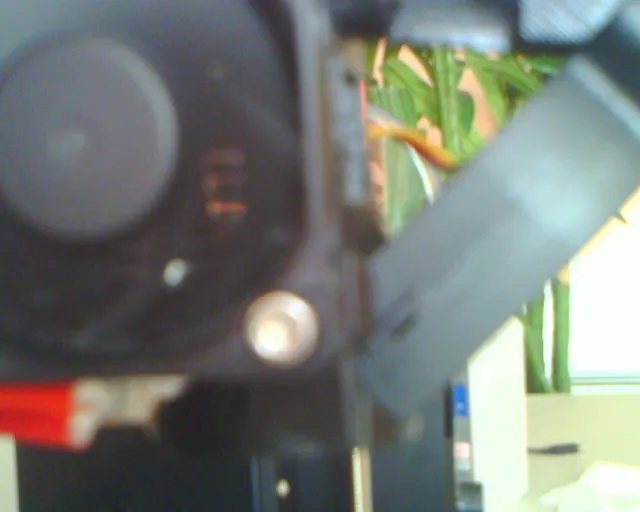

My first attempt to create a timelapse started with printing a z-axis mount to attach to my Prusa MK3S+ printer. I dug through our boxes of old wires and electronics, and found an ancient webcam from 2009! It boasted 2 big and beautiful megapixels, with a maximum resolution of 1600x1200! What a steal! But as you could probably guess, in reality the quality was actually atrocious and completely unusable.
Despite this, I still decided to try running a timelapse using the built-in timelapse functionality in OctoPrint.
After having configured the webcam within OctoPrint (available as a physical /dev/videoN device through the
video4linux driver), I enabled timelapses, and let a few print jobs go. While the result was expectedly completely
unusable, there were a few major things I learned from this attempt:
- Mounting a timelapse camera onto the z-axis (so that it will move with the printer) was not a good idea. While this might be useful for a live video feed to check up on a running print job, this would make for a very boring timelapse as you would only ever get to see the side of the printed object.
- Consistent lighting would be crucial to make a good timelapse. Even if I was only printing during the day, the shadows still change throughout the day and are very noticeable even on a minute-to-minute basis. If the sun sets, or goes behind a cloud, or a light is turned off, then my timelapse would be ruined.
- And most importantly, I need a much better camera!
What’s more, is that I realized that the built-in timelapse functionality is lacking in some crucial features, mainly:
- Centering: There was no way to move the extruder to one spot for each frame! This resulted in the extruder jumping all over the entire print, making for a messy timelapse.
- Capturing: This relied on a webcam streaming in video capture mode (not a single-shot crisp image!), which makes webcams particularly unsuitable for this task.
Fortunately, I already had the most expensive component: a pretty good DSLR camera (borrowed from a family member that
never used it
Lucky for me, Octolapse already provides multiple guides for connecting DSLR cameras:
I also went on a tangent trying to get a live video stream from the camera. webcamize turned out to do this job well. But for the reasons I mentioned earlier, a timelapse from a video stream would not be ideal for this project, not to mention that the video stream was limited to the resolution of the preview screen of the camera (much, much less than what the camera was capable of). webcamize also consumed 70% of a core at all times while it was running (probably due to the video loopback adapter) which was horrible. I abandoned this feat once I found about the official guides from Octolapse
The main gist of connecting a DSLR to Octolapse is using gphoto2, a camera control utility, to capture images just
as if I were pressing the shutter button. Octolapse recommends to avoid immediately downloading images after taking
them, as the extra time spent waiting could result in globs on the extruder and ruin your print. I took the same
route and downloaded all the images just before the rendering took place.
While the scripts provided in the 2nd guide will work fine, they have one major drawback, that being that all images must be wiped from the camera’s SD card in order for it to download the correct images. I tweaked them until I was able to remove this requirement entirely, by storing the last taken image’s number and downloading all images with a number higher than it after the print finishes.
#!/bin/bash
# IMPORTANT: This folder will likely vary for each camera.# Run `gphoto --list-files` to determine the correct path for images.
CAMERA_FOLDER="/store_00020001/DCIM/100CANON"
# Put the arguments sent by Octolapse into variables for easy useCAMERA_NAME=$1
set -o errexitset -o nounsetset -o pipefailshopt -s nullglob
echo "[-] Camera info:"gphoto2 --auto-detect --summary --storage-info
# IMPORTANT: The config keys and values set here may vary across different cameras.# Run 'gphoto --list-all-config' to get all config keys and values.
echo "[+] Synchronizing time on camera"echo "[+] Setting camera capture output to SD card"gphoto2 --set-config datetimeutc=now \ --set-config capturetarget=1
echo "[+] Obtaining the last taken picture number"PREV_NUM=$(gphoto2 --folder "$CAMERA_FOLDER" --list-files | grep '^#' | tail -n 1 | awk '{print $1}' | tr -d '#')START_NUM=$(($PREV_NUM + 1))echo $START_NUM > /tmp/octolapse-start-num#!/bin/bash
# Put the arguments sent by Octolapse into variables for easy useSNAPSHOT_NUMBER=$1DELAY_SECONDS=$2DATA_DIRECTORY=$3SNAPSHOT_DIRECTORY=$4SNAPSHOT_FILENAME=$5SNAPSHOT_FULL_PATH=$6
set -o errexitset -o nounsetset -o pipefailshopt -s nullglob
# Trigger the camera to take an image and immediately exit (will not wait or be downloaded)gphoto2 --auto-detect --trigger-capture#!/bin/bash
# IMPORTANT: This folder will likely vary for each camera.# Run `gphoto --list-files` to determine the correct path for images.
CAMERA_FOLDER="/store_00020001/DCIM/100CANON"
# Put the arguments sent by Octolapse into variables for easy useCAMERA_NAME="$1"SNAPSHOT_DIRECTORY="$2"SNAPSHOT_FILENAME_TEMPLATE="$3"SNAPSHOT_FULL_PATH_TEMPLATE="$4"
set -o errexitset -o nounsetset -o pipefailshopt -s nullglob
mkdir -p "$SNAPSHOT_DIRECTORY"
# Get the start img number and the currently highest img number on the cameraecho "[+] Loading the starting picture number and obtaining the last picture number on the camera"START_NUM=$(cat /tmp/octolapse-start-num)END_NUM=$(gphoto2 --folder "$CAMERA_FOLDER" --list-files | grep '^#' | tail -n 1 | awk '{print $1}' | tr -d '#')
# Nothing to downloadif [ -z "$END_NUM" ] || [ "$END_NUM" -le "$START_NUM" ]; then echo "[!] No new images taken since starting the print!" exit 0fi
# Coerce END_NUM to a numberEND_NUM=$(($END_NUM))
# Download all the imagescd "$SNAPSHOT_DIRECTORY"echo "[+] Downloading images #$START_NUM to #$END_NUM"gphoto2 --folder "$CAMERA_FOLDER" --get-file=$START_NUM-$END_NUM --force-overwrite
# Rename all images to the octolapse formatecho "[+] Renaming images"i=0for f in *.JPG *.jpg *.JPEG *.jpeg; do new=$(printf "$SNAPSHOT_FILENAME_TEMPLATE" "$i") mv "$f" "$new" i=$((i+1))doneMy first attempt with this new camera setup turned out to be quite good!
However, while testing I encountered another issue I kept running into: the camera’s auto power-off functionality. While
I was able to manually turn this off in the camera’s settings, I was unable to automate this via gphoto2 for some
reason. This setting was marked as writable, but this wasn’t the first one I encountered that also behaved like this.
This means that there would be no way to automatically turn off my camera once my print finishes. Unfortunate, but
ultimately not that big of an issue.
However, a bigger issue was when I forgot to turn the camera back on! Starting a print job would spit out an unhelpful error notification from Octolapse, providing no indication of the actual error message:
After tinkering a bit more with the start script, I was able to automate sending a notification to the UI, using another 3d party plugin (API Notifications). (I was surprised to find that there was no built-in API endpoint to create a notification, why???) This also requires an application key to be provided to the script (Global API keys are deprecated and will be removed in OctoPrint v2.x). This creates a much nicer user experience when you inevitably forget to turn on your camera before a print :)
Here are the changes required to the ~/octolapse-scripts/before-print-start.sh script:
--- before-print-start.sh 2025-08-03 17:36:18.023032893 -0700+++ before-print-start.sh 2025-08-03 17:40:35.574080875 -0700@@ -14,8 +14,27 @@ # Run `gphoto --list-files` to determine the correct path for images.
CAMERA_FOLDER="/store_00020001/DCIM/100CANON"+OCTOPRINT_URL="http://localhost:5000"+OCTOPRINT_API_KEY="<API_KEY>"
+# Check if any cameras are connected+# If not, send an error notification to the OctoPrint UI via the OctoPrint-API-Notifications plugin+if ! gphoto2 --auto-detect | grep -q '[0-9]'; then+ echo "[!] No camera detected; sending notification"++ curl -s -X POST "${OCTOPRINT_URL}/api/plugin/api_notifications" \+ -H "Content-Type: application/json" \+ -H "X-Api-Key: ${OCTOPRINT_API_KEY}" \+ -d '{+ "command": "notify",+ "message": "No external camera was detected! Please check the USB connection and ensure that the camera is on!",+ "title": "No camera detected!",+ "type": "error",+ "persist": true+ }'+fi+ echo "[-] Camera info:" gphoto2 --auto-detect --summary --storage-infoAnd here is how the final result looks like from the OctoPrint UI:
These notifications could really be used for any sort of task that isn’t directly implemented as an OctoPrint
plugin, such as background processes, automated cron jobs, and much more if necessary. Of particular note is the
"persist": true property on the payload, which pins the message to the UI until it is manually dismissed. This means
that these notifications won’t just *disappear* if you don’t acknowledge them.
